Description:

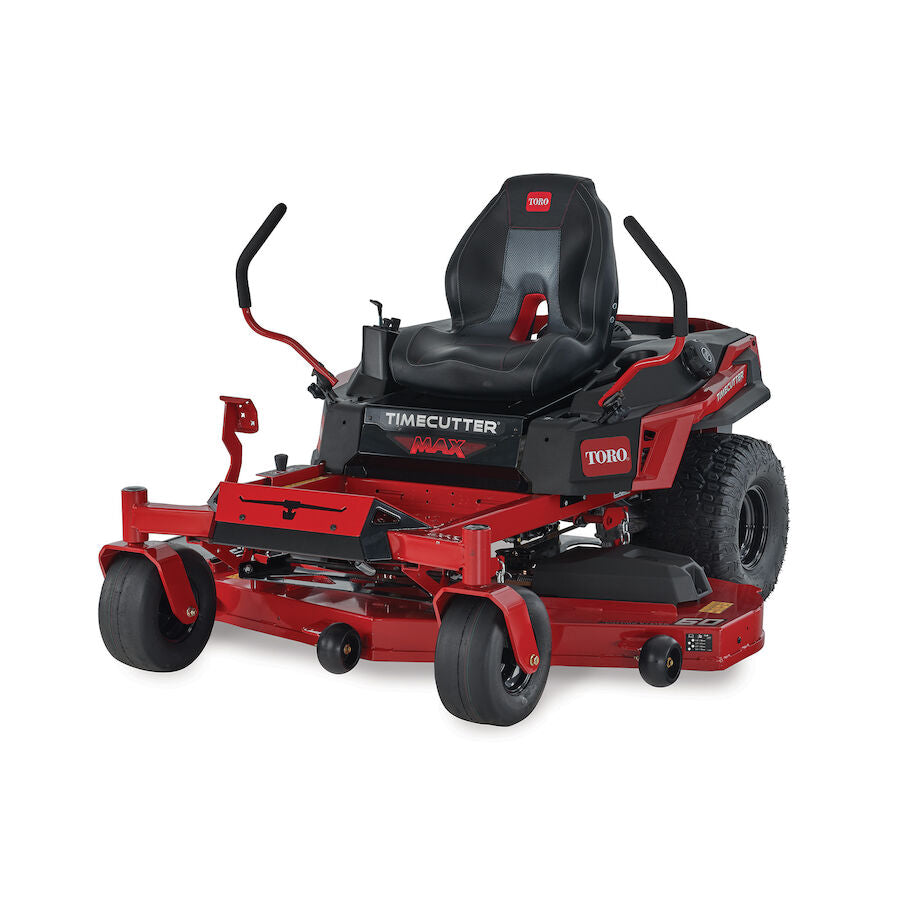

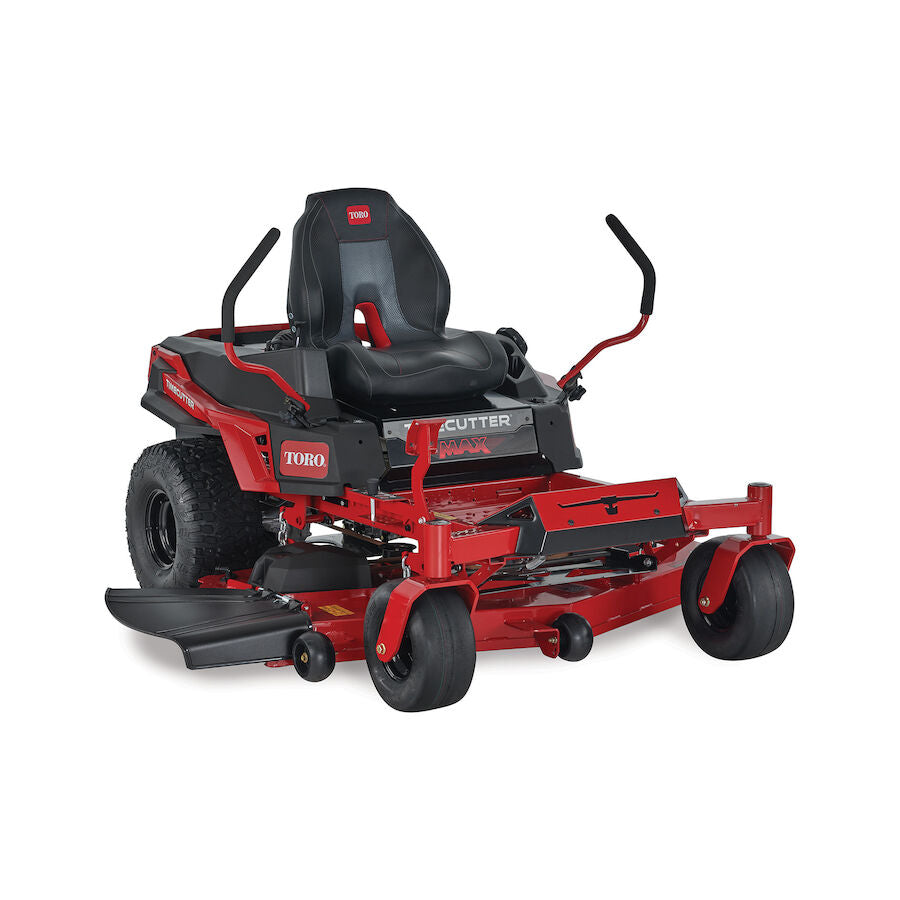

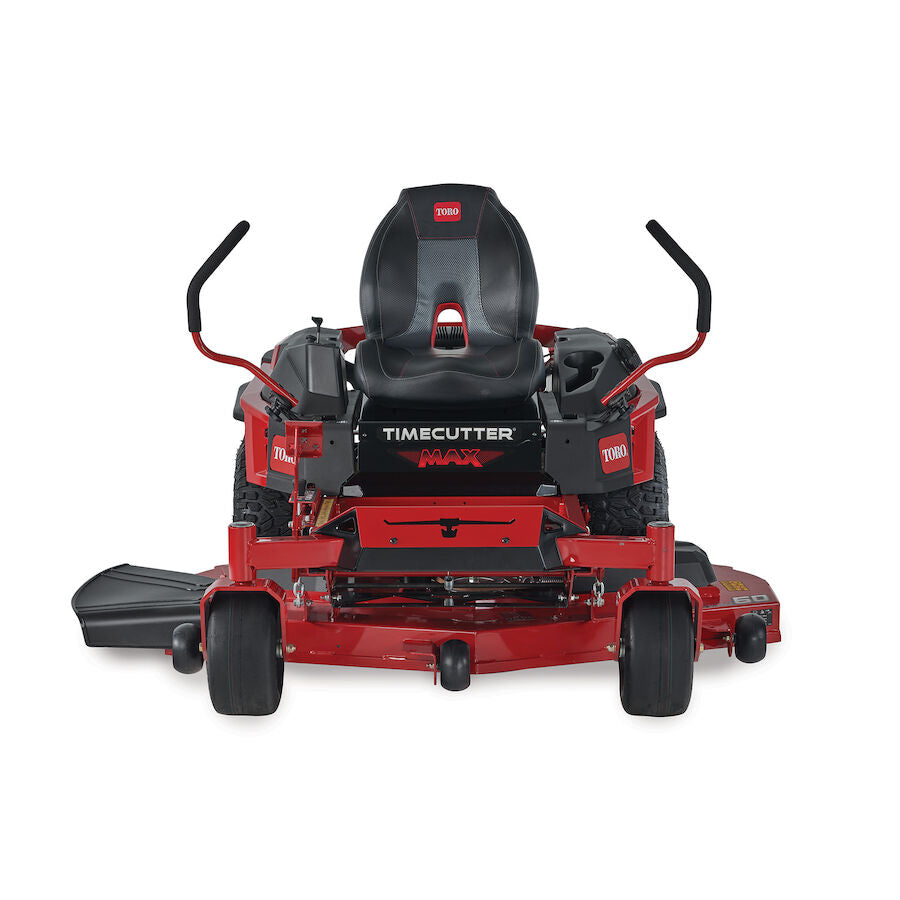

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.

Features:

Over 100 years of Pro DNA course through the veins of every mower we build.

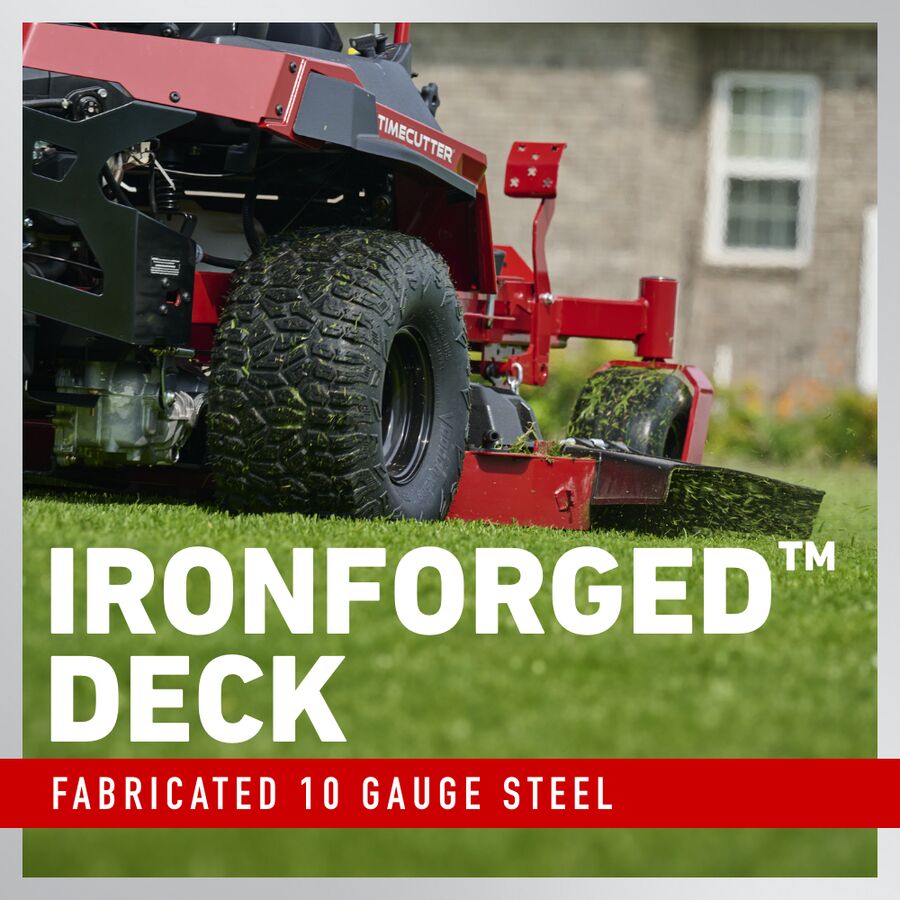

Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
The gaming-style seat gives you big time support exactly where you need it.
The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
Spray blocking fenders keep tire spray off your engine, and more importantly, you.
The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

Product Type: TimeCutter Max
Product Use: Residential
Weight: 668 lbs / 303 kg
Box Dimensions: 82.0 in. x 63.0 in. x 35.0 in. (208.3 cm x 160.0 cm x 88.9 cm)

Engine & Power

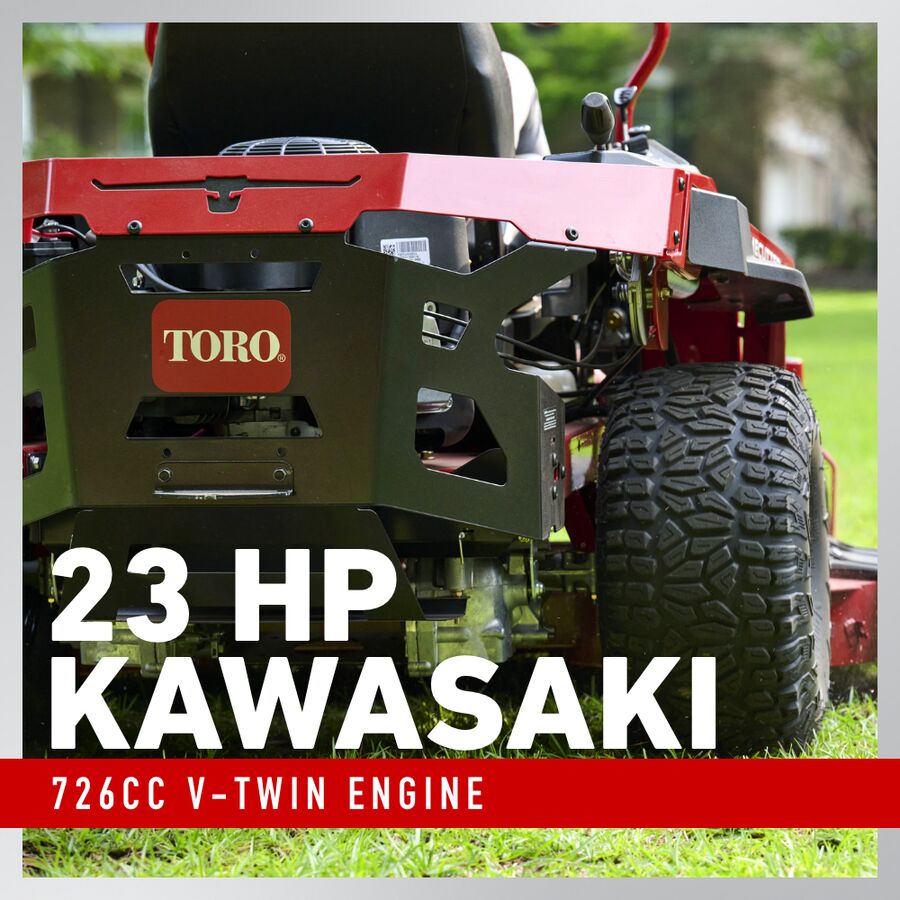

Engine Brand: Kawasaki
Engine Model: FR691V
Engine Displacement: 726 cc
Engine Horsepower: 23.0 hp
Engine Power: 17.2 kW
Cooling System: Air Cooled
Start Type: Electric
Fuel Type: Gasoline
Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
Recommended Oil Type: 10W-30
CARB Compliant: No

Drive System

Drive Type: Rear-Wheel Drive
Drive System: Hydrostatic
Transmission: Dual Hydrostatic HG-ZT2800
Hydraulic Drive: Standard
Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
Forward Mowing Speed: Up to 7.0 mph / 11.2 kph

Cutting System

Deck Size: 60 in / 152 cm
Deck Material: 10-Gauge Steel
Deck Design: IronForged®
Height of Cut: 1.0 - 5.0 in. / 2.5 - 12.7 cm
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
Number of Blades: 3
Cutter System: Steel Cutting Blade
Discharge Chute: Side
Washout Port: Standard
Foot Operated Height of Cut: Standard

Frame & Build

Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Deck Spindle Housing: Cast-Aluminum
Spindle Bearings: Maintenance-free
Greasable Bearings: Yes

Wheels & Tires

Front Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
Rear Drive Tires: 20 in. x 10 in. - 8 in. (51 cm x 26 cm - 20.3 cm)
Tires (Alt.): 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
Anti-Scalp Wheels: 3 Standard
