Description:

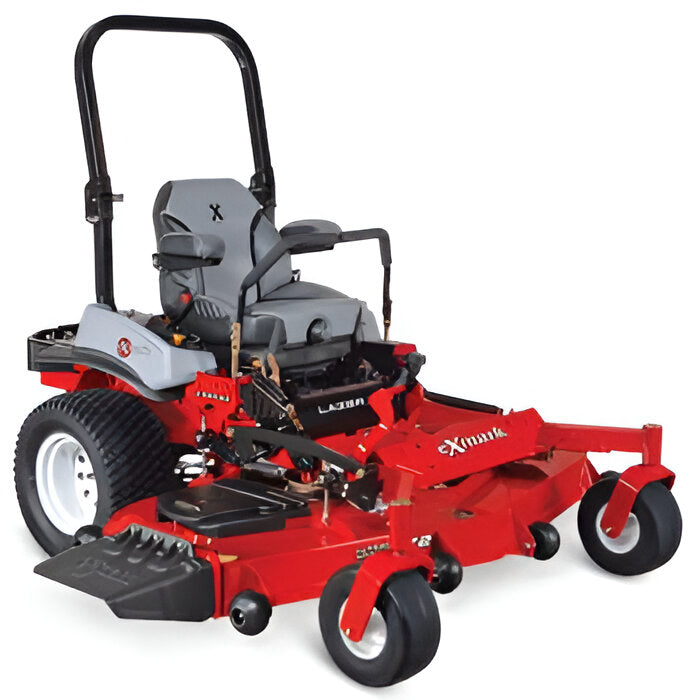

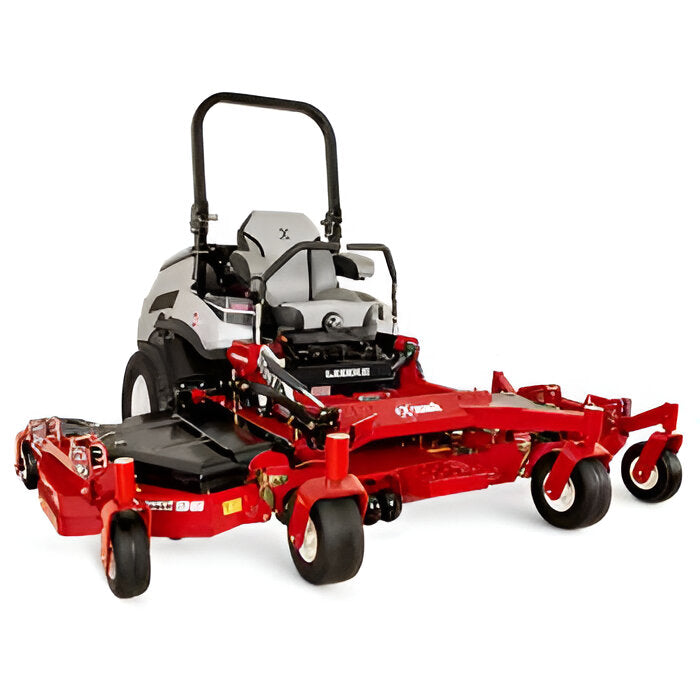

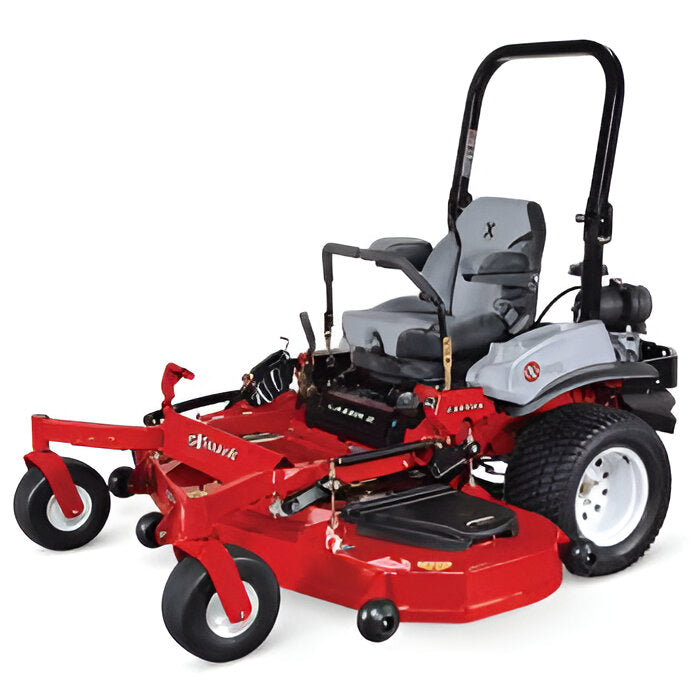

With options to meet the needs of the most demanding landscape maintenance professionals, our top-rated Exmark Lazer Z X-Series zero-turn mowers represent the state-of-the-art in commercial mowers. Cutting deck options include our massive 96-inch UltraCut Flex Wing cutting deck and select models equipped with our exclusive cut quality enhancing Adapt Technology. Choose from rugged commercial-grade engines, including high-efficiency Electronic Fuel Injection (EFI) options equipped with our exclusive EGov and RED Technology, which can boost fuel efficiency by up to 41%. Lazer Z X-Series zero-turn mower models are available with UltraCut Series 6 decks in 52-, 60-, and 72-inch cutting widths, with or without Adapt Technology, or the 96-inch UltraCut Flex-Wing rear discharge cutting deck.
Regardless of the combination you choose for your Exmark Lazer Z zero-turn mower, you’ll ride in unmatched comfort thanks to our full-suspension seating system and smooth, easy-to-use controls that offer precision maneuverability. And from a long-term value standpoint, nothing beats the Exmark Lazer Z X-Series mower. It’s the perfect combination of power, productivity, and durability. That’s why it’s our top-of-the-line gasoline-powered mower and should be at the top of your list.
Specification:
-
Blade Spindles: Sealed, non-greasable; 7.75″ diameter cutter housing, 30mm (1.18″) diameter spindle shaft; double row bearings, top and bottom; splined blade driver.
-
Drive Tires: 24 x 12.0-12, 4-ply Turf Master®.
-
Front Caster Tires: 13 x 6.5-6 smooth tread, semi-pneumatic.
-
Caster Forks: .50″ thick yoke arms.
-
Tractor Frame: Unibody, welded, heavy-duty 1.5″ x 3″ tubular steel.
-
Steering Control: Hydraulically dampened twin levers; adjustable fore and aft; 3 position adjustable dampeners; 2 height positions.
-
Parking Brake: Lever-actuated disc brake.
-
Seat: Deluxe, two-tone bolstered suspension seat; Elastomeric Vibration Control material; Seat Isolation System for 3-plane isolation, fore-aft slide, and seat flip-up.
-
Electrical: 12-volt battery, 15-amp alternator.
-
Standard Features: Engine hour meter, cup holder.
-
UPC: 193308225418.
-
Engine Brand: Kawasaki.
-
Engine Model: FX921V.
-
Engine Displacement: 999 cc.
-
Engine Series: V-Twin.
-
Engine Speed: 3,750 RPM.
-
Air Filter: Heavy-duty canister air filtration system.
-
Fuel Type: Gas Carbureted.
-
Fuel Capacity: 12-gallon (45.4-L) single tank with single fill location.
-
Fuel Indicator: Electronic sender.
-
Drive: Hydro-Drive.
-
Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems; integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter; heavy-duty components; 16 cc pumps, 17.1 cubic inch motors.
-
Speed: Infinitely variable; 0–11.5 mph (18.5 km/h) forward, 0–7.0 mph (11.3 km/h) reverse.
-
Carb Compliant: No.
-
Deck Lift: Standard; foot-controlled deck lift with Adapt system.
-
Safety Package: Operator Presence Controls (OPC); drive system interlock; safety interlock system indicators.
-
ROPS: 2-post foldable ROPS; standard with seat belt and latch.
-
PTO Engagement: MagStop Electromagnetic 250-ft-lb clutch with spot brake.
-
Drive Wheel Release: Allows movement without engine running.
-
Engine Spec: _S04.
-
Width / Cutting Deck: 60″.
-
Deck Style: Floating Deck.
-
Deck Style Description: Full-floating UltraCut Series 6; heavy-duty spindle; side discharge standard; bag or mulch optional.
-
Deck Construction: 10-gauge top; 7-gauge side skirt; 7-gauge spindle mounting locations.
-
Blade Tip Speed: Approximately 18,500 fpm.
-
Cutting Heights: 1.0″ (2.5 cm) to 5.5″ (11.8 cm) in 0.25″ (0.64 cm) increments adjustable from operator’s seat.
-
Blades: 3 blades; 20.50″ length.
-
Width: 72.8 in. (184.9 cm).
-
Length: 83.1 in. (211.1 cm).
-
Height: 70.5 in. (179.1 cm).
-
Curb Weight: 1256 lbs.
